低压伺服电机
- 规格齐全
- 高、低速全系列
- 稳定性高
- 绝缘等级高
外径40~130mm全系列产品,满足各种直流供电需求
转速范围500~3000rpm,适应不同现场工况
400~600rpm低转速电机,5~8Nm大扭矩输出,省去减速器,简化机械结构

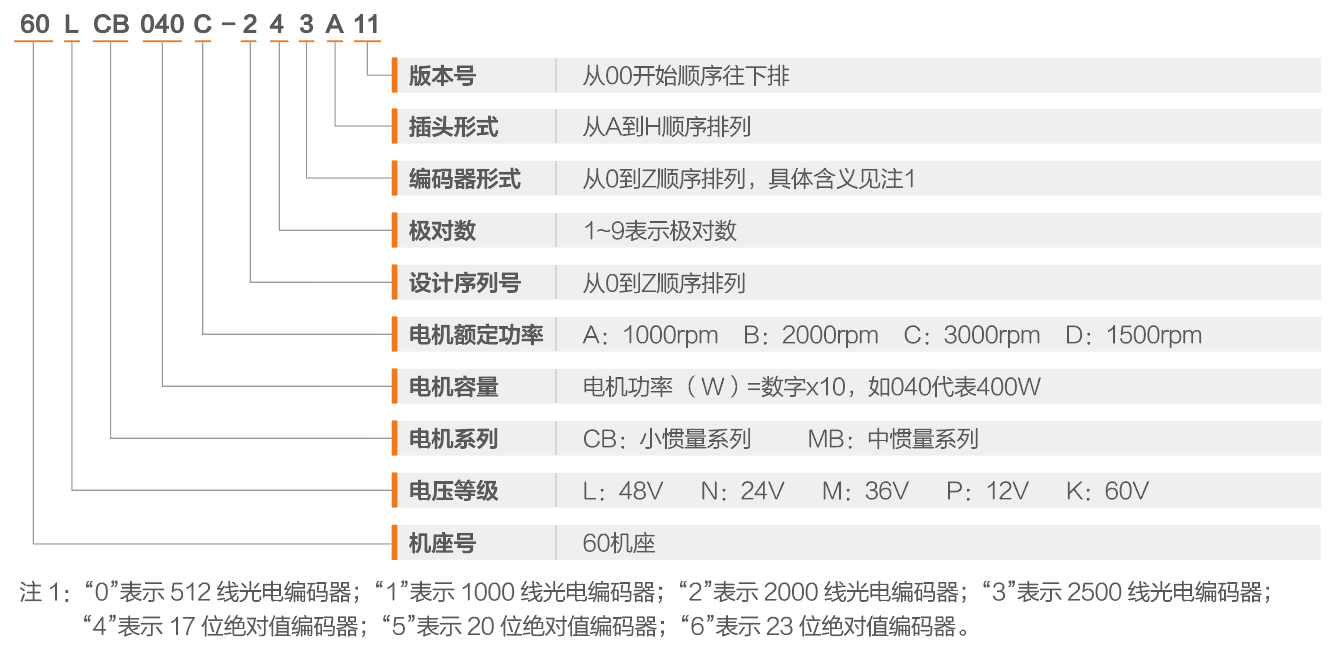

规格型号 | 额定功率(W) | 额定电流(A) | 额定转速(rpm) | 额定转矩(Nm) | 重量(Kg) | 机身长度(mm) | 插头说明 | 是否制动 |

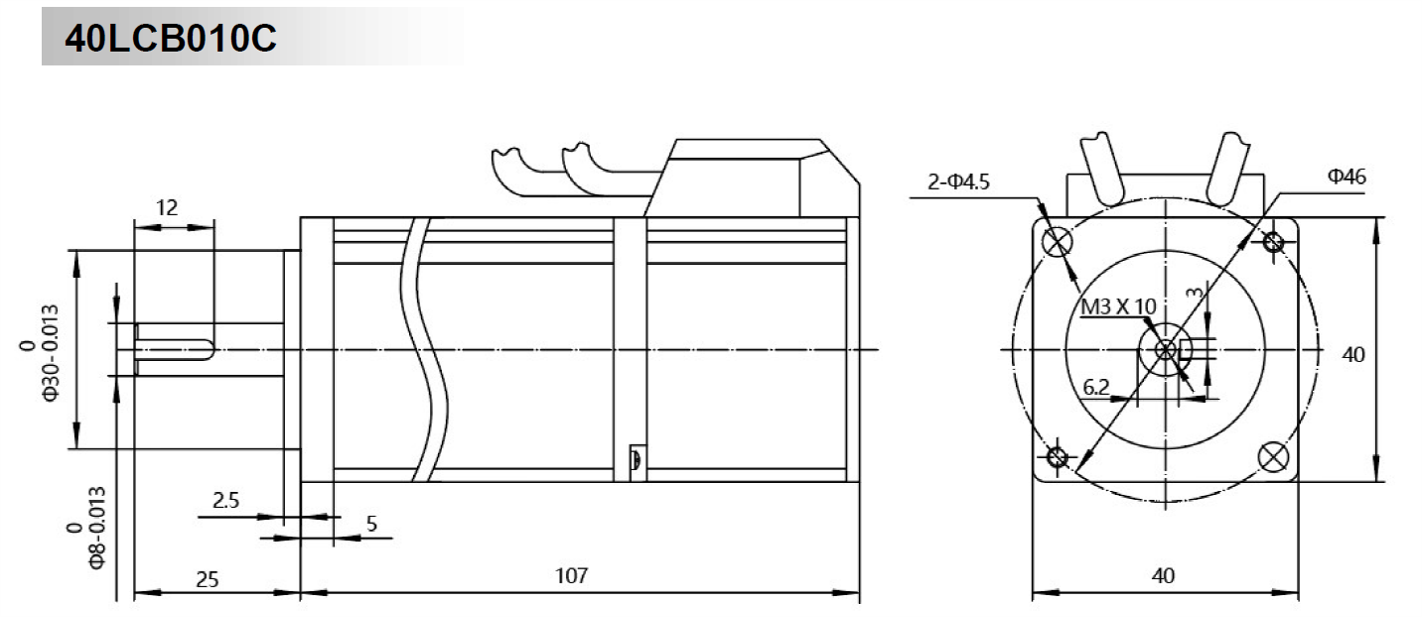

40LCB010C-J00000 | 100 | 3.5 | 3000 | 0.32 | 1.0 | 107 | 匹配转接延长电缆 |
否
|

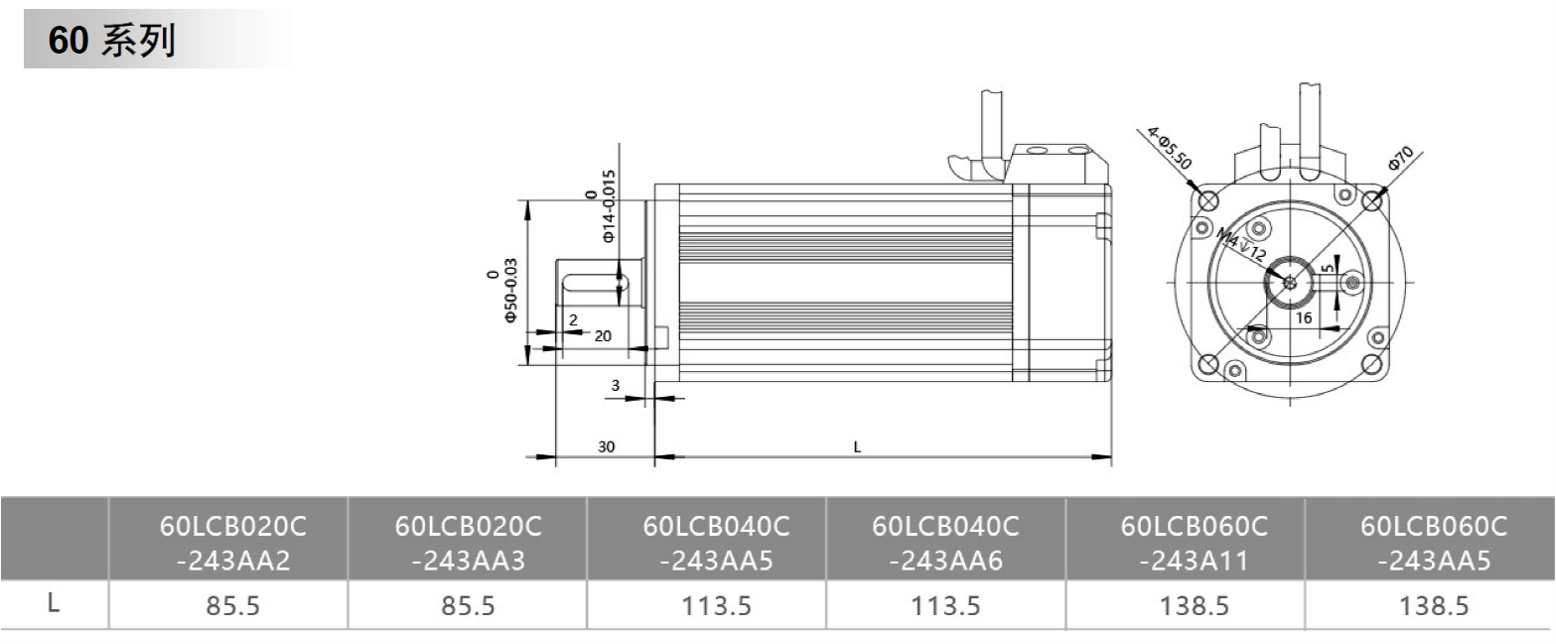

60LCB020C-243AA2 | 200 | 6 | 3000 | 0.63 | 1.0 | 85.5 | 与驱动器直连 |
否
|
60LCB020C-243AA3 | 200 | 6 | 3000 | 0.63 | 1.0 | 85.5 | 匹配转接延长电缆 | 否 |
60LCB020C-243GA1 | 200 | 6 | 3000 | 0.63 | 1.4 | 125.5 | 与驱动器直连 | 是 |
60LCB020C-243GA2 | 200 | 6 | 3000 | 0.63 | 1.4 | 125.5 | 匹配转接延长电缆 | 是 |
60LCB040C-243AA5 | 400 | 12.5 | 3000 | 1.27 | 1.4 | 113.5 | 与驱动器直连 | 否 |
60LCB040C-243AA6 | 400 | 12.5 | 3000 | 1.27 | 1.4 | 113.5 | 匹配转接延长电缆 | 否 |
60LCB040C-243GA1 | 400 | 12.5 | 3000 | 1.27 | 1.7 | 153 | 与驱动器直连 | 是 |
60LCB040C-243GA2 | 400 | 12.5 | 3000 | 1.27 | 1.7 | 153 | 匹配转接延长电缆 | 是 |
60LCB060C-243A11 | 600 | 18 | 3000 | 1.91 | 1.82 | 138.5 | 与驱动器直连 | 否 |
60LCB060C-243AA5 | 600 | 18 | 3000 | 1.91 | 1.82 | 138.5 | 匹配转接延长电缆 | 否 |
60LCB060C-243BA1 | 600 | 18 | 3000 | 1.91 | 2.0 | 177.5 | 与驱动器直连 | 是 |
60LCB060C-243GA1 | 600 | 18 | 3000 | 1.91 | 2.0 | 177.5 | 匹配转接延长电缆 | 是 |

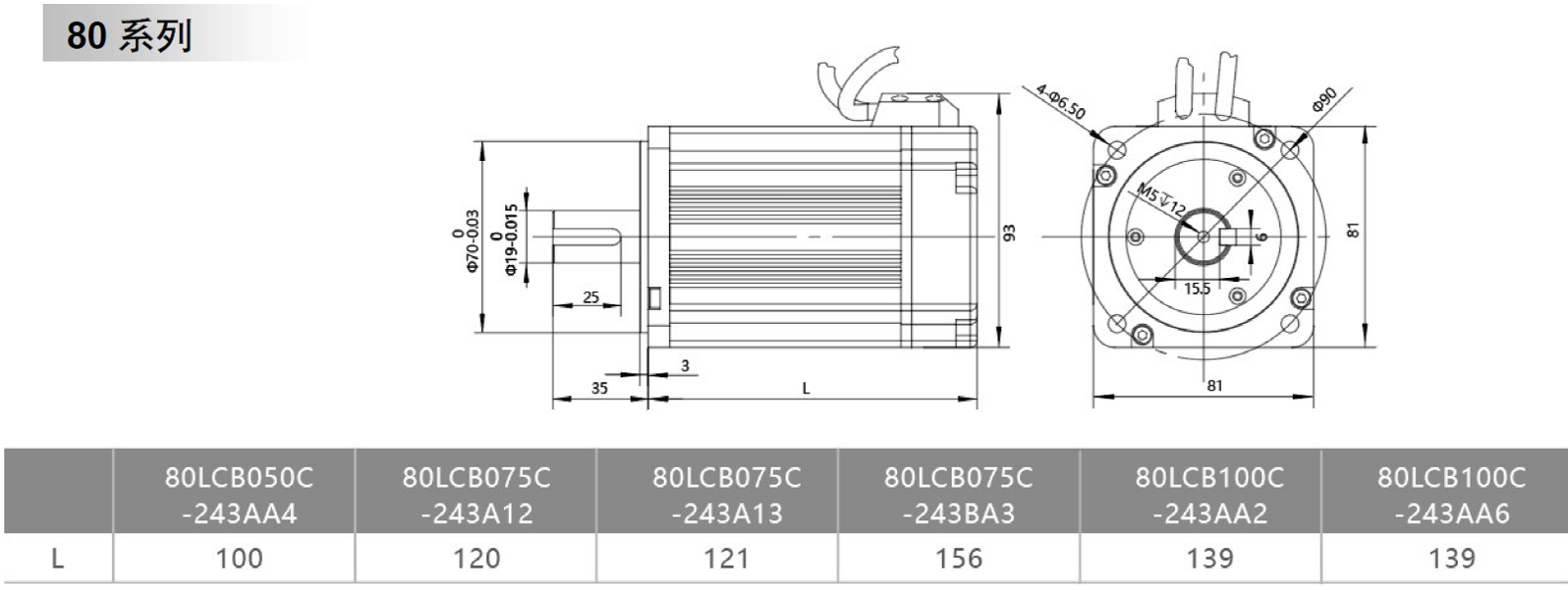

80LCB050C-243AA4 | 500 | 17 | 3000 | 1.6 | 2.1 | 100 | 与驱动器直连 | 否 |
80LCB075C-243A12 | 750 | 22 | 3000 | 2.4 | 2.8 | 120 | 匹配转接延长电缆 | 否 |
80LCB075C-243A13 | 750 | 22 | 3000 | 2.4 | 2.8 | 120 | 与驱动器直连 | 否 |

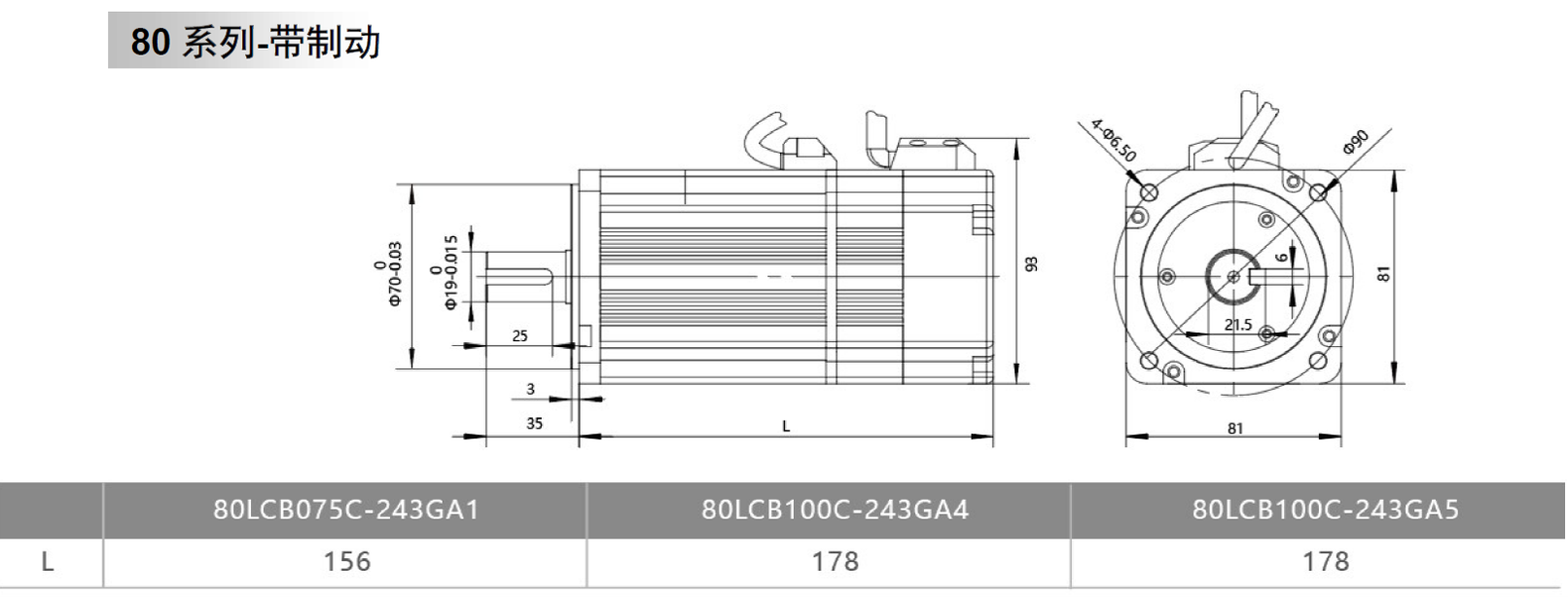

80LCB075C-243BA3 | 750 | 22 | 3000 | 2.4 | 3.5 | 156 | 匹配转接延长电缆 | 是 |
80LCB075C-243GA1 | 750 | 22 | 3000 | 2.4 | 3.5 | 156 | 与驱动器直连 | 是 |
80LCB100C-243AA2 | 1000 | 28 | 3000 | 3.2 | 3.5 | 139 | 匹配转接延长电缆 | 否 |
80LCB010C-243AA6 | 1000 | 28 | 3000 | 3.2 | 3.5 | 139 | 与驱动器直连 | 否 |
80LCB100C-243GA4 | 1000 | 28 | 3000 | 3.2 | 4.1 | 178 | 与驱动器直连 | 是 |
80LCB100C-243GA5 | 1000 | 28 | 3000 | 3.2 | 4.1 | 178 | 匹配转接延长电缆 | 是 |

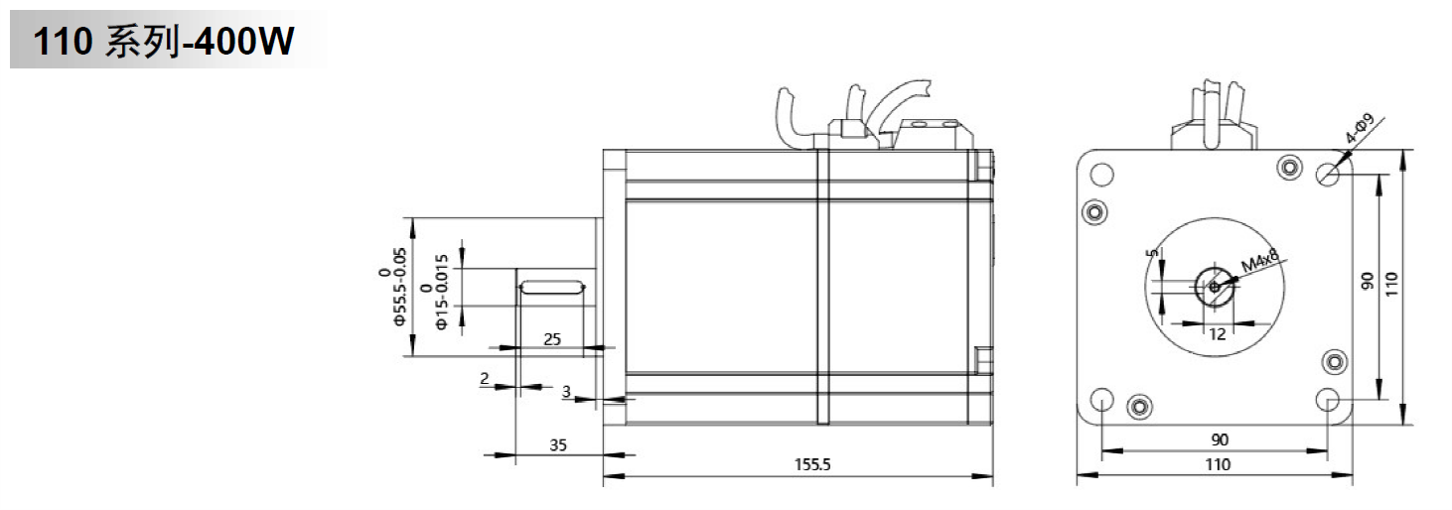

110LMB040L-243B11 | 400 | 12 | 930 | 7 | 5.9 | 155.5 | 与驱动器直连 | 是 |

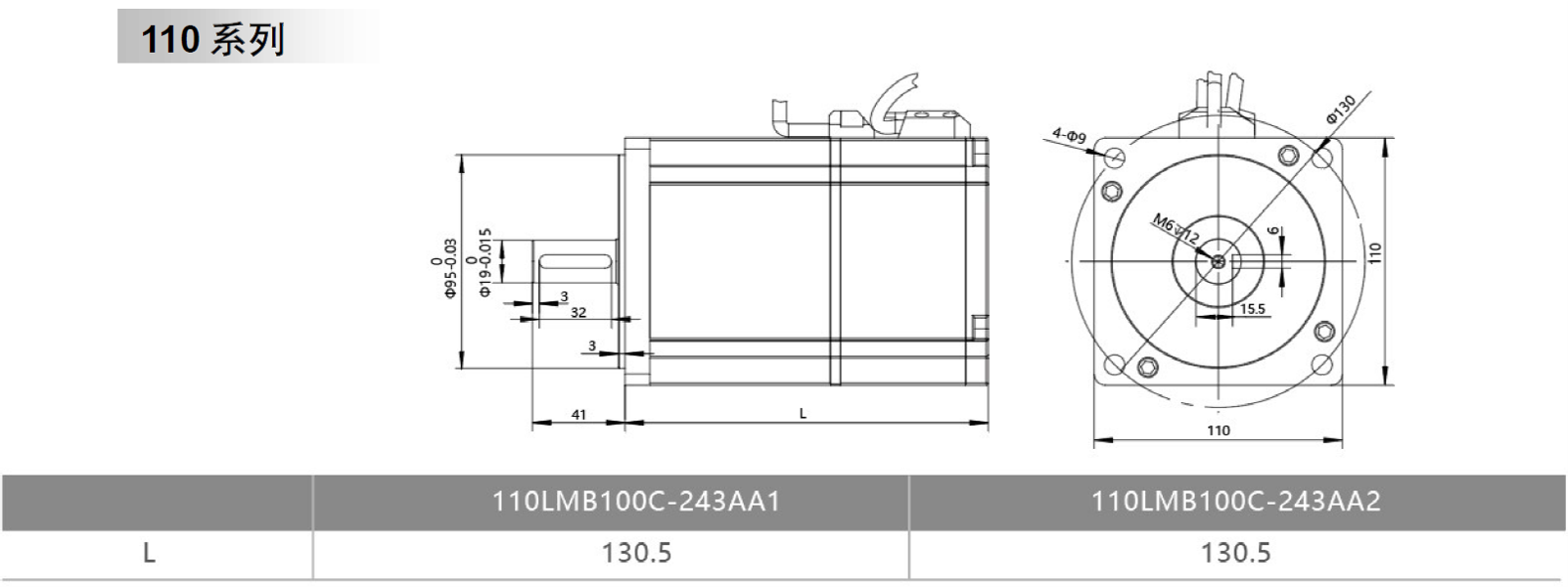

110LMB100C-243AA1 | 1000 | 30 | 3000 | 3.3 | 4.8 | 130.5 | 与驱动器直连 | 否 |
110LMB100C-243AA2 | 1000 | 30 | 3000 | 3.3 | 4.8 | 130.5 | 匹配转接延长电缆 | 否 |

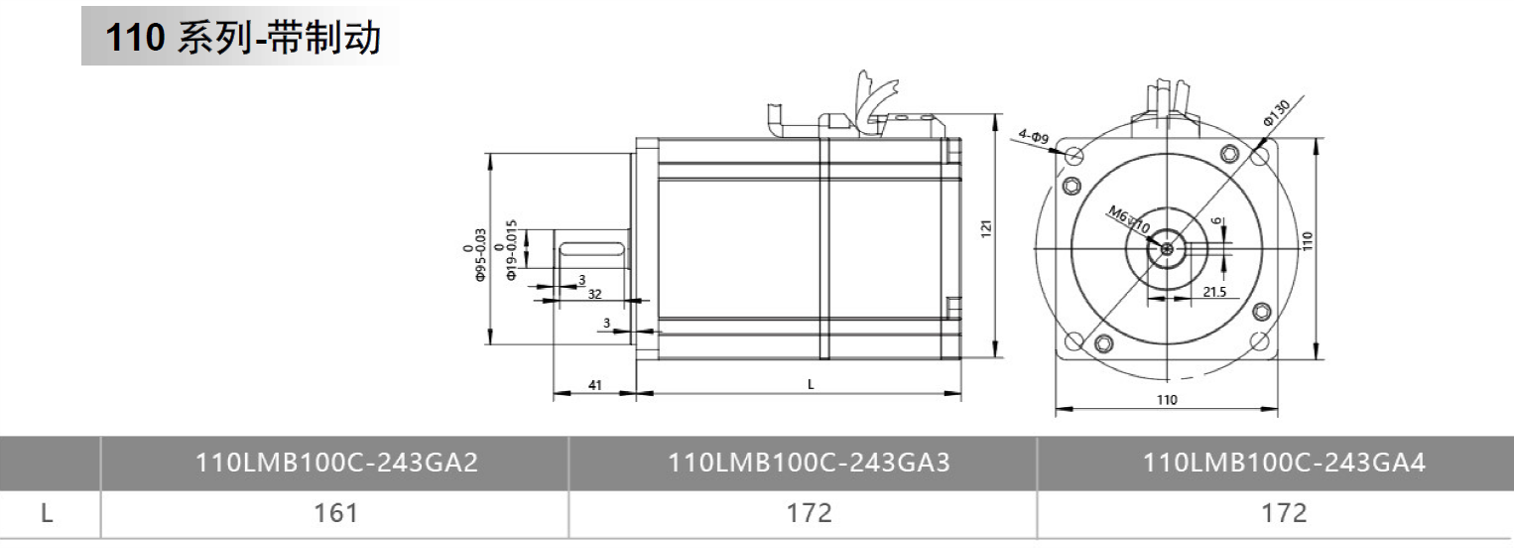

110LMB100C-243GA3 | 1000 | 30 | 3000 | 3.3 | 5.9 | 172 | 与驱动器直连 | 是 |
110LMB100C-243GA4 | 1000 | 30 | 3000 | 3.3 | 5.9 | 172 | 匹配转接延长电缆 | 是 |

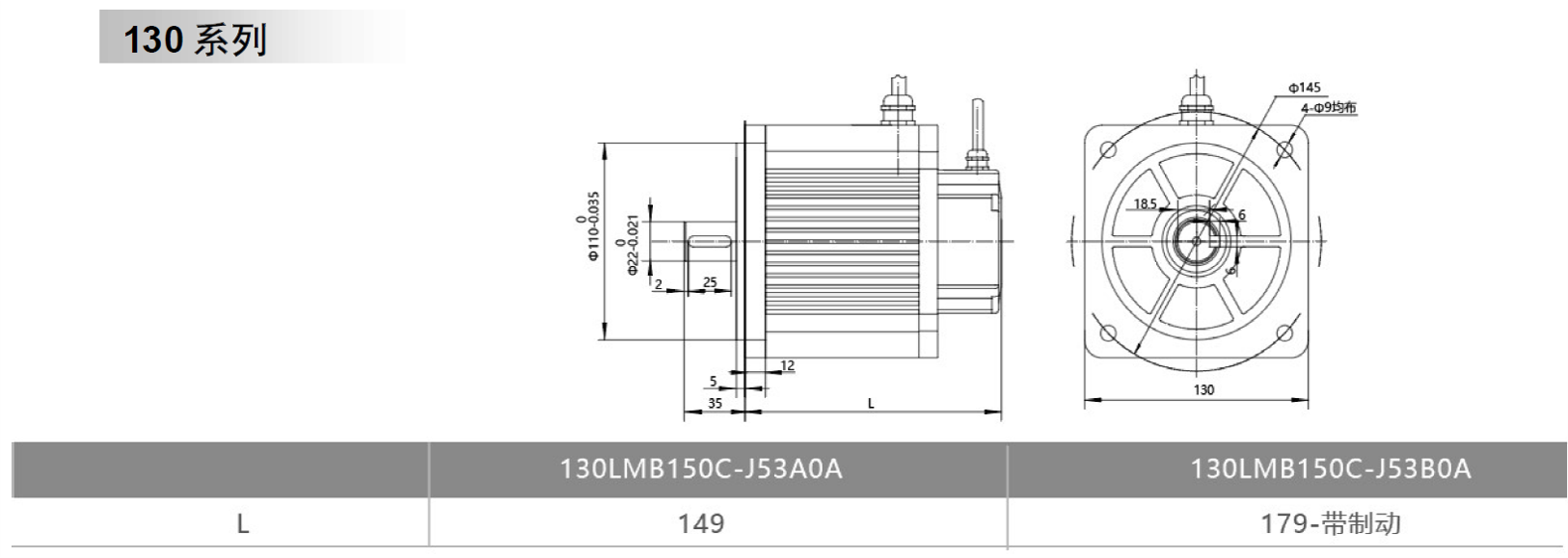

130LMB150C-J53A0A | 1500 | 39 | 3000 | 4.77 | 5.7 | 149 | 匹配转接延长电缆 | 否 |
130LMB150C-J53B0A | 1500 | 39 | 3000 | 4.77 | 5.7 | 179 | 匹配转接延长电缆 | 是 |

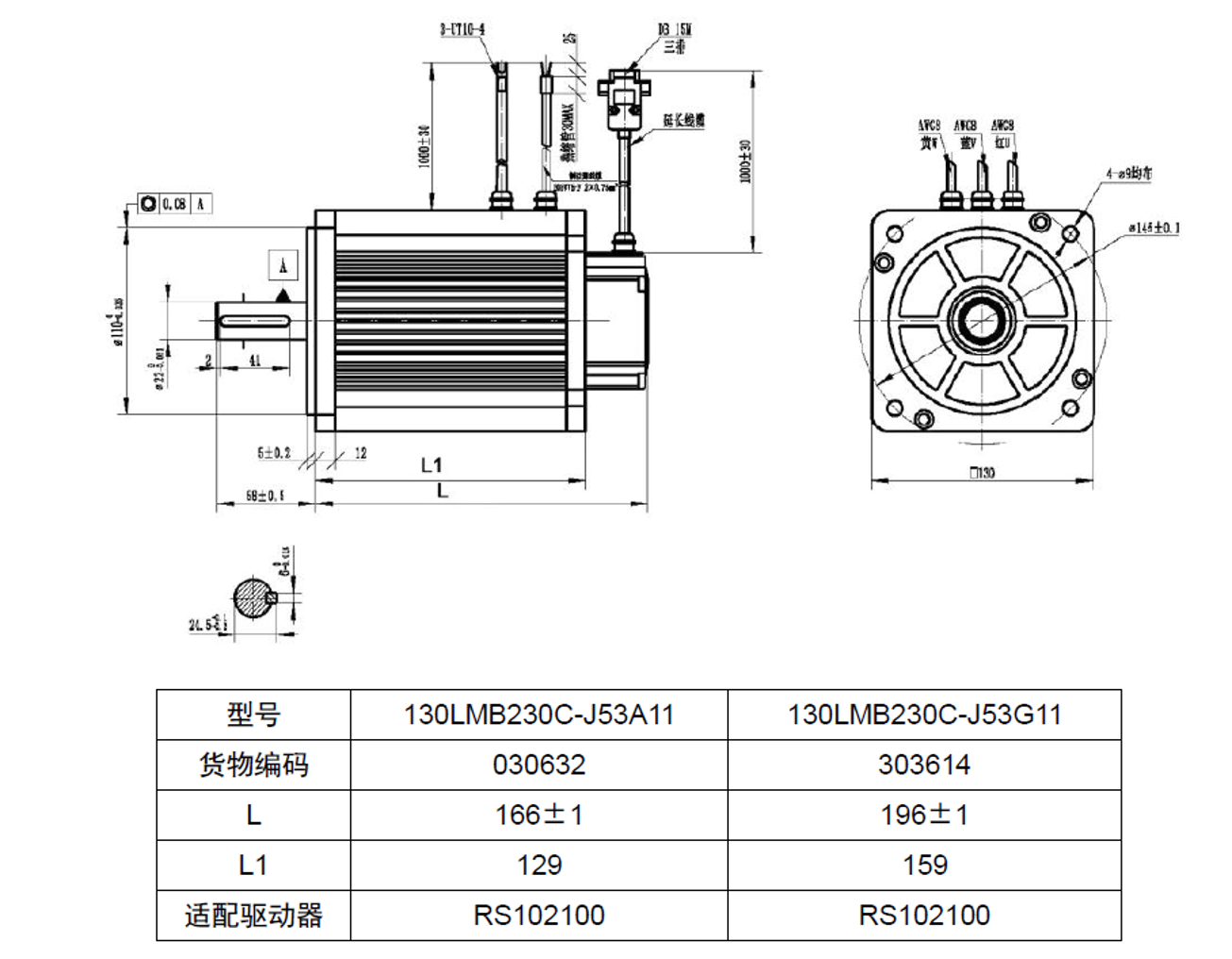

130LMB230C-J53A11 | 2300 | 65 | 3000 | 7.3 | 8.6 | 166 | 与驱动器直连 | 否 |
130LMB230C-J53G11 | 2300 | 65 | 3000 | 7.3 | 10 | 196 | 与驱动器直连 | 是 |

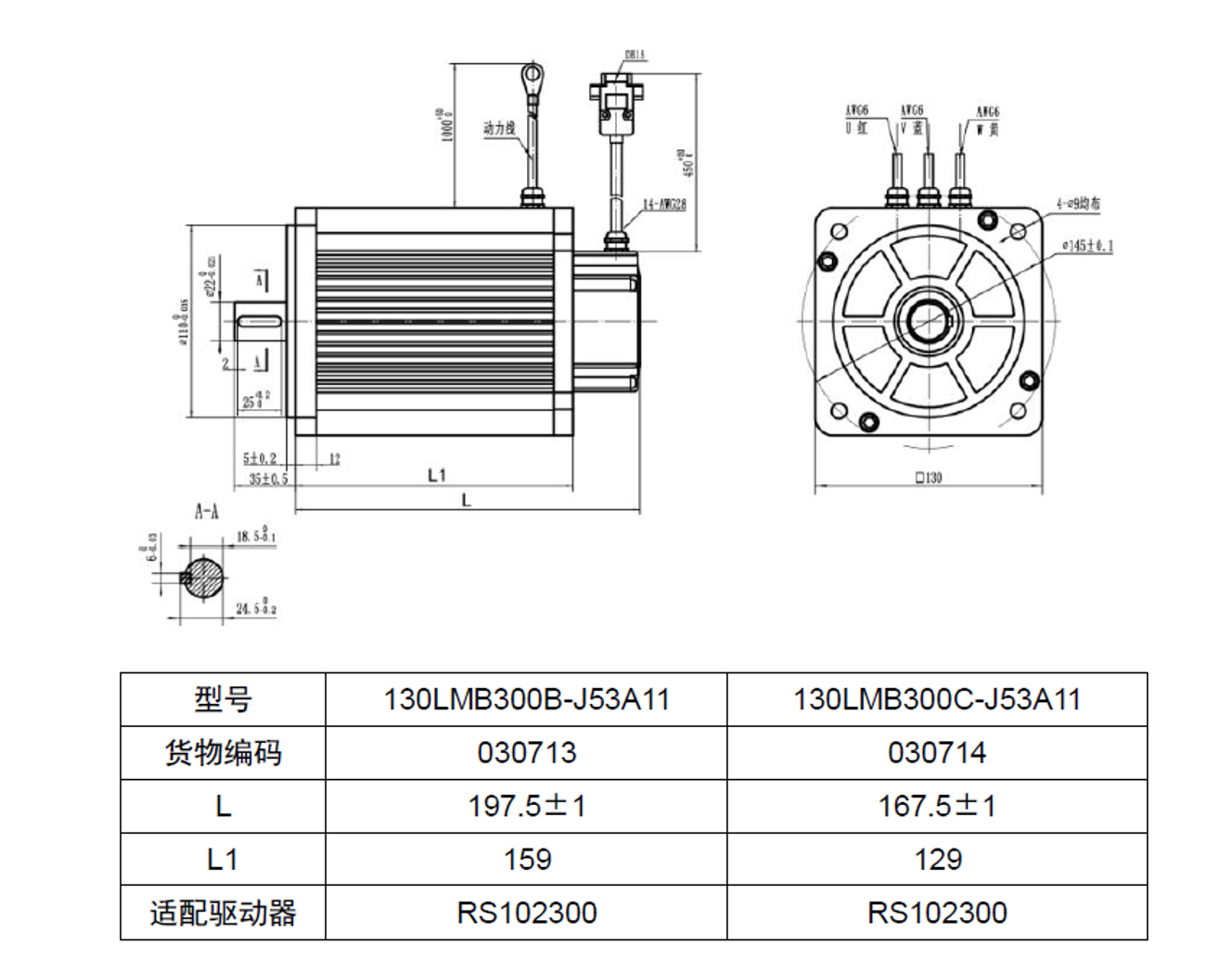

130LMB300B-J53A11 | 3000 | 66 | 2000 | 15 | 10 | 197.5 | 与驱动器直连 | 否 |
130LMB300C-J53A11 | 3000 | 72 | 3000 | 9.5 | 8 | 167.5 | 与驱动器直连 | 否 |
